Deploy

Deployment of Stonesoft NGFW into AWS is done using Layer 3 Firewall mode. It is possible to deploy as a multi-interface Inline Gateway, or a single interface NAT Gateway.

Deployment can be done by creating a new VPC and NGFW, or by deploying Stonesoft into an existing VPC.

Add NGFW to existing VPC

To add a Stonesoft NGFW to an existing VPC, run ngfw_launcher --add -y <path_to_yaml>.

You will be prompted as follows (region can be placed in YAML config):

Stonesoft AWS Launcher
======================

Enter a region:
1) ap-northeast-1
2) ap-northeast-2
3) ap-south-1
4) ap-southeast-1
5) ap-southeast-2
6) eu-central-1
7) eu-west-1
8) sa-east-1
9) us-east-1
10) us-east-2
11) us-west-1
12) us-west-2

View available VPC configurations:
1) vpc-f1e12a98 (172.18.2.0/24)
2) vpc-f91ef790 (172.31.0.0/16)

Available subnets;
1) 172.18.2.0/25 (us-east-2b)
2) all

Choose installation style:
1) Inline Gateway
2) NAT Gateway

Note

When deploying as a NAT gateway, a NAT rule should be configured on Stonesoft for the source networks that require outbound services

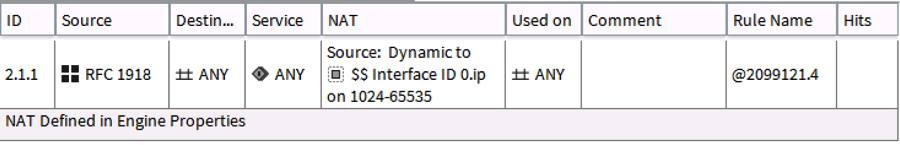

NAT Rule example:

Source: RFC 1918
Destination: Any
NAT: Source Dynamic, $$Interface ID 0.ip
_images/natrule.png

Create new VPC and NGFW

To create a Stonesoft NGFW and a VPC, run ngfw_launcher --create -y <path_to_yaml>

Note

Creating a VPC requires vpc_subnet, vpc_private and vpc_public settings in the YAML configuration

When opting to do a create operation, all settings can be pulled directly from the YAML configuration. If you want this to be completely hands off, populate aws_region in the YAML file as well or you will be prompted for this information.

Listing NGFW instances

To list Stonesoft NGFW instances in a VPC, run ngfw_launcher --list -y <path_to_yaml>.

You will get a list of instances currently available in the specified VPC.

Stonesoft AWS Launcher
======================

View available VPC configurations:
1) vpc-f1e12a98 (172.18.2.0/24)
2) vpc-f91ef790 (172.31.0.0/16)

Instance ID           |Availability Zone   |Type        |State       |Launch Time
i-001e6ea3d4f499a01   |us-east-2b          |t2.micro    |running     |2016-12-28 01:58 UTC

Removing NGFW

To remove Stonesoft NGFW from AWS, run ngfw_launcher --remove -y <path_to_yaml>.

You will be prompted as follows (region can be placed in YAML config):

Stonesoft AWS Launcher
======================

View available VPC configurations:
1) vpc-f1e12a98 (172.18.2.0/24)
2) vpc-f91ef790 (172.31.0.0/16)

Remove NGFW instances;
1) i-0d7b8be886384ab97 (us-east-2b)
2) all
